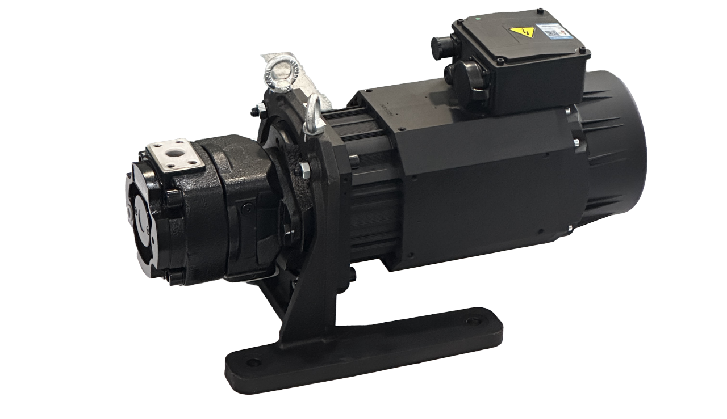

High-Efficiency Hydraulic Power Unit
01 Stable & reliable
- 60,000+units/year
- 150,000+ in total
02 High Speed & High Pressure
- Max.Speed: 3000rpm,
- Max.Pressure: 28MPa
03 High efficiency
- Low inertia, High response, perfectly adaptive for high-speed machine
- Can provide GB Level 1/2 energy efficiency product
04 Compact structure
- 15% smaller than Gen. 2
- more compact installation space, more user-friendly

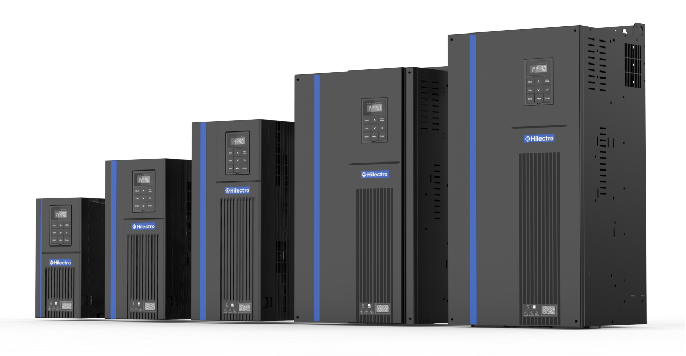

EH3000 Electro-Hydraulic Servo Drive
01 Specializing in hydraulics
- Power range: 11–400kW
- Pressure fluctuation <1bar.
02 Easy to use
- Motor auto-tuning free
- supports remote maintenance
- Type-C port for easy operation and setup.
03 Stable & Reliable
- 50,000 units/year
- Dual parameter backup
- Better dustproofing and heat dissipation.
04 Rich Feature
- Compatible with SPM, IPM and other motor controls;
- Supports EtherCAT, CAN, Modbus etc.

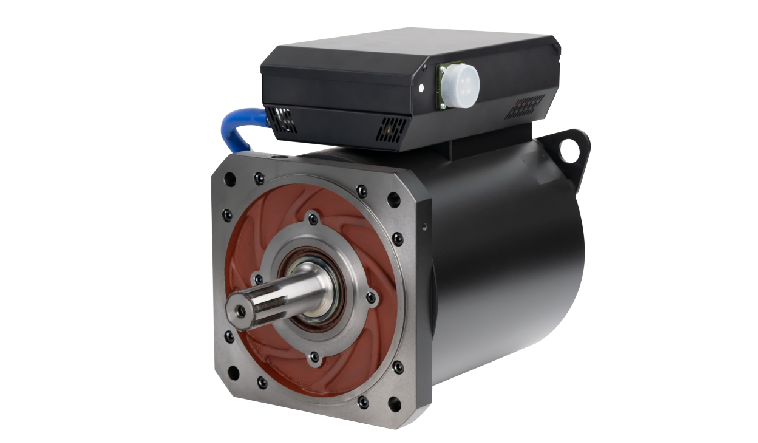

Electric Pre-Plasticizing Direct Drive Motor
01 High-Efficiency
- Torque range: 400–900Nm
- Max. Speed: 400rpm.
02 Low Noise & Maintenance-Free
- No gear transmission,
- lower noise,
- maintenance-free
03 Compact Volume
- Water-cooling,
- greatly reduce the volume
- and increase torque density

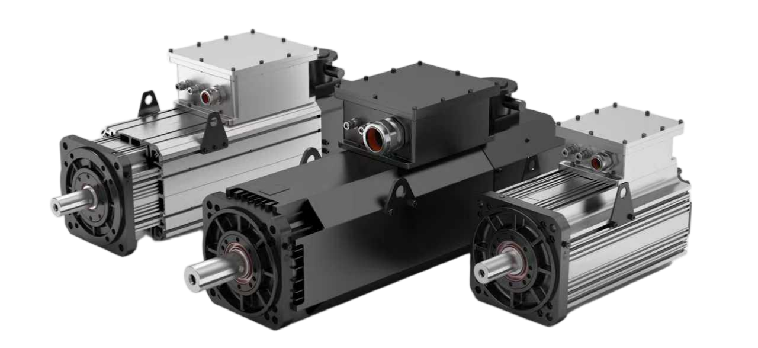

PM Explosion-Proof Servo Motor
01 Power Range
- HP series: 3kW~200kW (full working conditions)
- HPK series: 20kW~400kW (full working conditions)
02 Lightweight & High Density
- Smaller size, lighter weight; ideal for confined spaces (oil drilling platforms, chemical pipeline interlayers); easier installation.
03 High Efficiency & Low Consumption
- Efficiency 93%–95%, meets Level 2 energy efficiency;
- significantly reduces long-term energy consumption for carbon reduction.
04 Fast Response
- Response time ≤0.02s; precise load fluctuation tracking.
- Speed stability (error ±0.5%) under ±10% load shock
