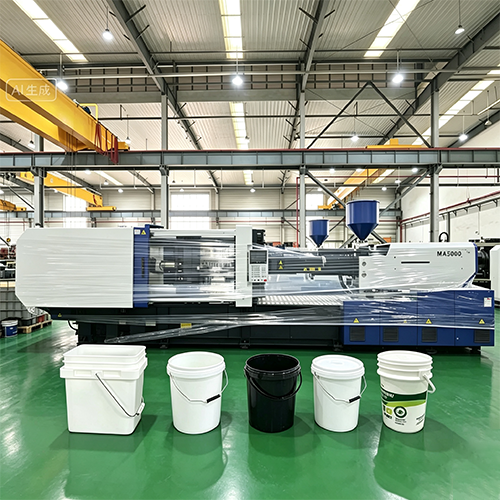

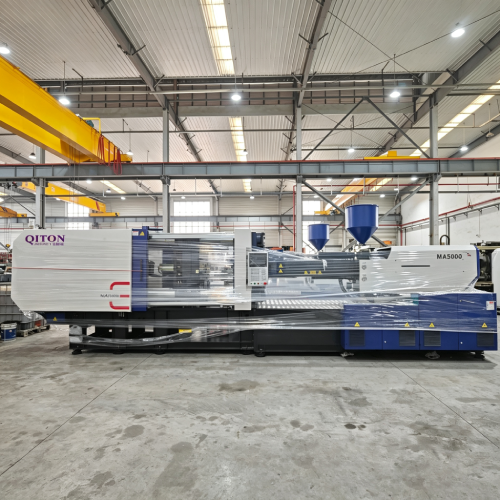

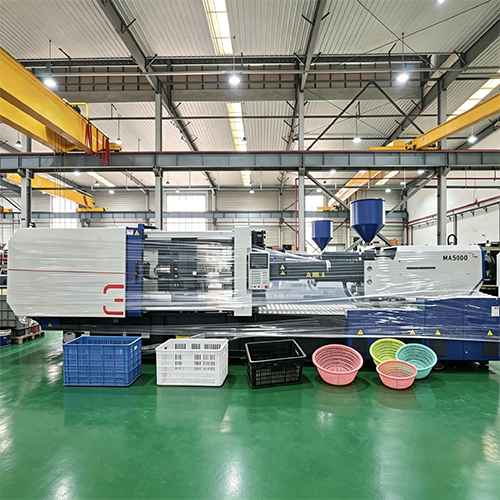

PP Basket Injection Molding Machine

QITONG PP Basket Injection Molding Machine Basket Paint pail High-Speed series Servo injection Molding Machine(470T-800T) Extra-long opening stroke, large servo motor, high speed capacity, fast plasticizing capacity.

 Machine Features

1.QITON launch classic MA-G series injection molding machine, taking full advantage of the industrial chain of injection molding machines in Ningbo, China, the capital of injection molding machines in the world. We try our best to make the machine parts universal and do mass production, so as achieve cost-effective and abstain mature structure. DF-G series equip with the international leading electronic control system, hydraulic system to make whole machines’ performance is pretty good and more cost-effective.

2.MA-G Injection molding machine use the box type high rigidity mold structure for the clamping part; the clamping support guide rail adopts the high rigidity design to reduce the deformation effectively.

3.Injection unit use double-cylinder ,double-guided support,mature structure

4. The whole control system of the injection molder features powerful function and stable performance with high speed response.

5. International leading servo driver, servo motor system, machine noise is more lower, machine running is more stable.



   Machine Specification

MA TECHNICAL DATA STOCK SERIES
Due to design updates, the above specifications are subject to change without notice.
SPECIFICATION UNIT MA600 MA800 MA1000
    A B C D A B C D A B C D
INJECTION UNIT
Screw Diameter mm 80 85 90 100 90 100 110 120 100 110 120 130
Lenath / Diameter Ratio L/D 22 20.7 19.6 17.6 24.4 22 20 18.3 24.2 22 20.2 18.6
Theoretical Injection Pressure Mpa 184 163 146 118 211 171 141 119 211 174 146 125
Theoretical Shot volume cm³ 2361.3 2665.7 2988.5 3689.1 3179.3 3925 4749.3 5652 4356.8 527107 6273.7 7362.9
Injection Weight (PS) g 2219.6 2505.7 2809.2 3468.1 2988.5 3689.5 4464.3 5312.9 4095.3 495504 5897.3 6921.1
Injection Rate (PS) g/s 448.7 506.5 567.8 701 516.1 637.2 771 917.6 651.2 788 937.8 1100.6
Plasticzing Capacity g/s 81.7 96.3 114.9 141.8 103.8 131.9 159.6 189.9 136.1 164.7 196 230
Maximum Screw Speed rpm 140 140 140 140 127 127 127 127 131 131 131 131
CLAMPING UNIT
Clamp Tonnage KN 6800 6800 6800 6800 8800 8800 8800 8800 10000 10000 10000 10000
Toggle Stroke mm 900 900 900 900 1040 1040 1040 1040 1220 1220 1220 1220
Space Between Tie Bars(HxV) mm 880 x 880 880 x 880 880 x 880 880 x 880 1000 x 1000 1000 x 1000 1000 x 1000 1000 x 1000 1160 x 1160 1160 x 1160 1160 x 1160 1160 x 1160
Max. Mold Height mm 880 880 880 880 1000 1000 1000 1000 1160 1160 1160 1160
Min. Mold Height mm 380 380 380 380 420 420 420 420 500 500 500 500
Elector Tonnage kN 180.9 180.9 180.9 180.9 212.3 212.3 212.3 212.3 246.2 246.2 246.2 246.2
Ejector Stroke mm 243 243 243 243 283 283 283 283 323 323 323 323
Ejector Number piece 21 21 21 21 21 21 21 21 21 21 21 21
OTHERS
System Pressure Mpa 16 16 16 16 16 16 16 16 16 16 16 16
Pume Motor Power KW 55 55 55 55 37 + 37 37 + 37 37 + 37 37 + 37 37 + 55 37 + 55 37 + 55 37 + 55
Heate Power KW 44 44 44 44 61 61 61 61 74 74 74 74
Hopper Capacity Kg 100 100 100 100 100 100 100 100 100 100 100 100
Machine Dimension(LxWxH) m 9.57 x 2.2 x 2.7 9.57 x 2.2 x 2.7 9.57 x 2.2 x 2.7 9.57 x 2.2 x 2.7 10.9 x 2.5 x 2.8 10.9 x 2.5 x 2.8 10.9 x 2.5 x 2.8 10.9 x 2.5 x 2.8 12 x 2.5 x 2.8 12 x 2.5 x 2.8 12 x 2.5 x 2.8 12 x 2.5 x 2.8
Oil Tank Capacity L 668 668 668 668 949 949 949 949 1333 1333 1333 1333
Machine Weight T 29 29 29 29 38 38 38 38 51 51 51 51
